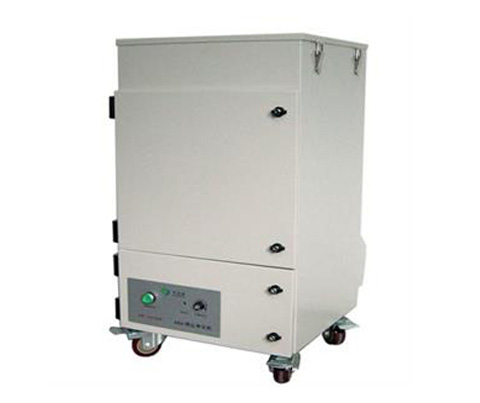

UL-EF500 Series Air Purfication Filter

UL-EF 500XL Series Air purification system offer state-of-the-art air purifying technology to filter the smog & dust and odors which generated during laser machinery working on materials, like cutting, marking, soldering, engraving, etc, the system can removes contaminants from the polluted air and at reducing or eliminating smog particles and volatile organic compounds (VOCs) in a working place, it’s really beneficial to employee healthy. This serials products are manufactured as either small stand-alone units or larger units that can be affixed to an air handler unit (AHU) in the medical, industrial, and commercial industries.

Detail

UL-EF 500XL Series Air purification system offer state-of-the-art air purifying technology to filter the smog & dust and odors which generated during laser machinery working on materials, like cutting, marking, soldering, engraving, etc, the system can removes contaminants from the polluted air and at reducing or eliminating smog particles and volatile organic compounds (VOCs) in a working place, it’s really beneficial to employee healthy. This serials products are manufactured as either small stand-alone units or larger units that can be affixed to an air handler unit (AHU) in the medical, industrial, and commercial industries.

1.  Suction fan speed control by PWM technology, air flow can be continued realtime control vs volumes of polluted production smog.
2.  Detection and Alarm Indicator unit for filter blocking and replacement alarming.
3.  The system design with tri-filter technology, which included pre-filter, main filter, air filter parts. Main HEPA filters remove at most 99.97% of 0.3-micrometer particles, and are usually more effective for particles which are larger. In dusty environments, a HEPA filter may follow an easilycleaned conventional filter (pre-filter) which removes coarser impurities so that the HEPA filter needs cleaning or replacing less frequently.
4.  HEPA filters do not generate ozone or harmful byproducts in course of its operation.

Tecnical Data

● Max. purify air flow rate: 480m3/h( air flow can be adjusted) , Max. air speed 40m/S
● Voltage: AC110/220V, 50~60Hz
● Input power: 320W
● Noise: <=50 dB
● Purification result: >=99%
●  Inlet Diameter:2x75mm
● Outline dimension:450x490x850(include suction tube)
