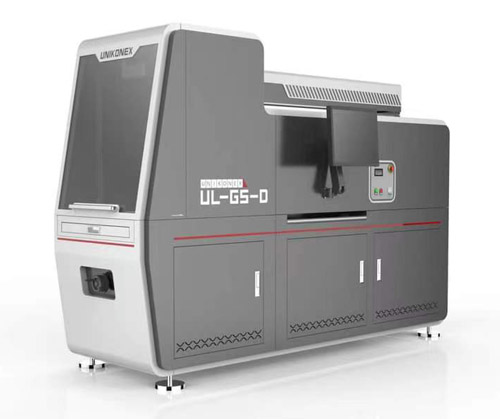

UL-GS-D Series CO2 Laser Marking System

UL-GS-D series CO2 laser marking machine equipped with selected DC CO2 laser tube in high quality beam, stable power output and long working lifetime. High-speed galvanometer scanning system with the compact structure design, easy installation, its a cost-effective system to full fit most marking job demand.
Red beam positioning system, accurate processing, reduce waste rate of materials.
Powerful graphics edition function, color image to mark directly, also support color to gray conversion.
Touch-less processing, low pollution, no abrasion.

Detail

General Details
UL-GS-D series CO2 laser marking machine equipped with selected DC CO2 laser tube in high quality beam, stable power output and long working lifetime. High-speed galvanometer scanning system with the compact structure design, easy installation, it’s a cost-effective system to full fit most marking job demand.

Red beam positioning system, accurate processing, reduce waste rate of materials. Powerful graphics edit function, color image to mark directly, also support color to gray conversion.


Features

1. Integrated compact structure with Auto focusing technology and easy operational.
2. Enhanced stability. Give the user best usability & reliability, high speed, plus precision and accuracy.
3. Beam quality is much better than traditional 2D laser marking machine, the diameter of focusing spot is less than 50um. It is very suitable for precision marking request.
4. High electro-optical conversion efficiency. The gross power consumption less than 1000W.
5. No need any special maintenance, long working life design.

6. High marking speed, It is 3-5 times faster than traditional marking machine.


Technical Specification

Product Model

UL-GS D100W/D120W

Scan Accuracy

0.01mm

Laser Type

CO2 DC Laser Tube

Min. Character Size

0.5mm

Laser Wavelength

10.64μm

Pulse Frequency

10KHz

Marking Scope

400x400mm/500x500mm/
600mm
×600mm

Cooling Mode

Water Cooling

Total Power

1500W

Laser Power

100W-150W

Power Supply

AC 110/220V ±5%, 50/60Hz

Max. Speed

8000mm/s

Data or File Format

BMP / JPGE / PCX /
TIFF / PLT / CDR / DWG /DXF



Applicable Material / Application
