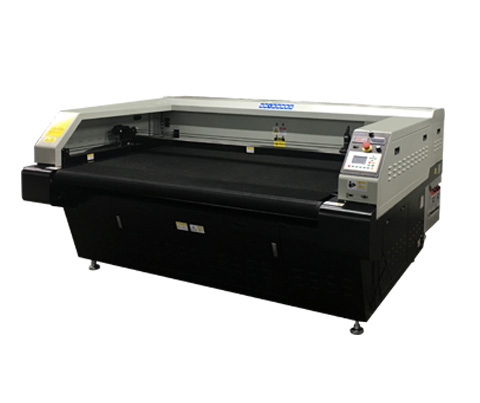

UL-GM Machine for Laser Cut Ventilation Hole

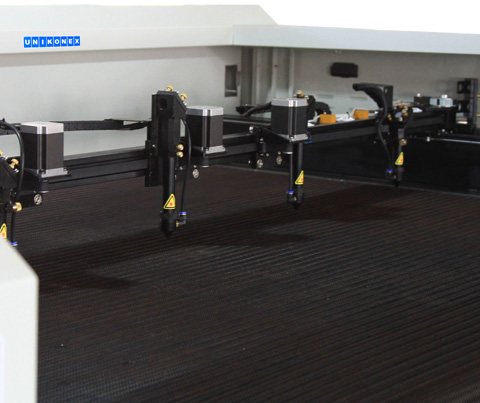

UL-GM laser cut ventilation holes machine is a high-precision laser machine with processing area 1800x1000mm, up to 4 laser heads available, which is well-prepared for the applications of laser cut ventilation holes, equipped with the high-precision digital control, rugged mechanics and software specialized on the cutting of textile and fabrics. It’s suitable for continues production. High performance, productivity, quality and reliablity add up to a lower cost of ower-ship, that’s means cost saving for your business.

Detail

General Details

UL-GM laser cut ventilation holes machine is a high-precision laser machine with processing area 1800x1000mm, up to 4 laser heads available, which is well-prepared for the applications of  laser cut ventilation holes, equipped with the high-precision digital control, rugged mechanics and software specialized on the cutting of textile and fabrics. It’s suitable for continues production. High performance, productivity, quality and reliablity add up to a lower cost of ower-ship, that’s means cost saving for your business.

Features

1. Laser cutting machine design with UniSmartCut controller which is based on latest DSP technology for improving the performance, dedicated speed controller software design ensures fast and stable moving, plus automatic laser compensation technology.
2. Suitable for end-user who has a high requirements on the precision cutting of ventilation holes, it is widely used for most popular application such as garment, sportswear industry etc.
3. Give the user best usablility&reliability, higher acceleration and speed, plus high motion precision and accuracy cutting.

Applicable Materials

Textiles&Fabrics, Paper, Leather, all Non-metal materials, etc.

Above includes materials commonly processed by laser, for questions on other materials please contact an applications specialist.

Technical Specification

Product Model UL-GM-180100
Laser-Type CO2 laser, Safety Class 4
Processing Area (W x L) 1800×1000mm
Cooling Mode Water-cooling
Cutting Speed 0-50000mm/min
Positioning Accuracy ≤±0.05mm
Data or File Format AI、BMP、PLT、DXF、TXT、DST
Laser Power 80W-150W
Power Requirements AC 110/220V±5%
Software Unikonex Control and Cutting system
Exhaust Requirements External Exhaust or Air Cleaner Required (Consult factory for Specification)
Mechanical Design Laser safety class 4, CE compliant, brushless DC motors.

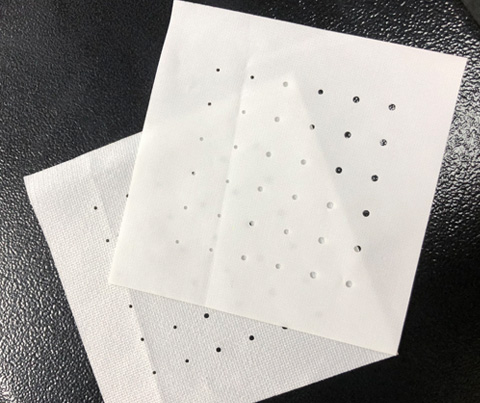

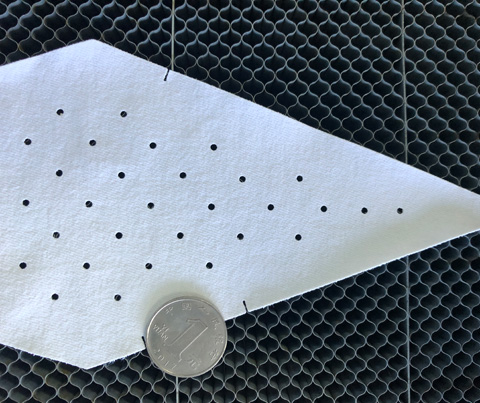

Applicable Material / Application
