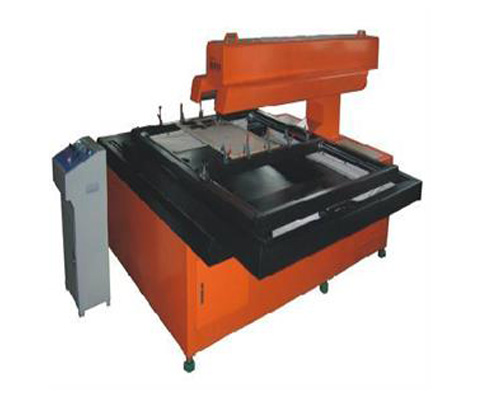

UL-D Series Die Board Laser Cutting Machine

This machine build with UniSmartcut technology of laser cutting and smart digital control system. With this laser cutting machines, the depth of cut can be accurately controlled, making them ideal for creating die cutting boards, usually MDF board for this purpose can be laser cut into any shape to show any design, the max. cutting deepth is 200mm.

Detail

General Details

This machine build with UniSmartcut technology of laser cutting and smart digital control system. With this laser cutting machines, the depth of cut can be accurately controlled, making them ideal for creating die cutting boards, usually MDF board for this purpose can be laser cut into any shape to show any design, the max. cutting deepth is 200mm.

Features

1.    UL-D series equipped with high quality CO2 laser tube, special design optical path processing & transmission system and moving parts driven by DSP digital control system to get high quality processing solution, which will not damage processing material.
2.    Due to the stable optical path design, the cutting power will not be effected by optical route distance, this technologies could ensure the same cutting aperture within processing area.
3.    Professional laser cutting software, powerful function built-in, friendly human-computer interface, easy operating, it is also suitable for CAD/CAM auto-programming and optimize typeset collocation.
4.    Standard industrial computer configuration, high speed analog input and output & digital input and output module.
5.    To make sure die board laser cutting machine reliable operation, this machine apply non-oil air compressor, refrigerated air dryer, high precision filter, exhaust fan.

Technical Specification

Product Model              UL-D Series
Laser type CO2 laser, Safety Class 4
Laser Power 300-400W
Cutting Area(mm) 1200×1200
Max. working clamp area(mm) 2440X1200
Laser power adjustable 0-100% by manual or automatic (it can be setup in software and hardware)
Max. cutting speed 0.8m/min (upon different materials)
Cooling Water-cooling
Positioning accuracy ≤0.03mm
Data format AI, BMP, PLT, DXF
Working voltage AC110/220V±10%
Software Unikonex professional software
Option Non-oil air compressor, refrigerated air dryer, high precision filter, exhaust fan and etc.

Applicable Materials

Wood&Ploywood&MDF.
Above includes materials commonly processed by laser, for questions on other materials please contact an applications specialist.
